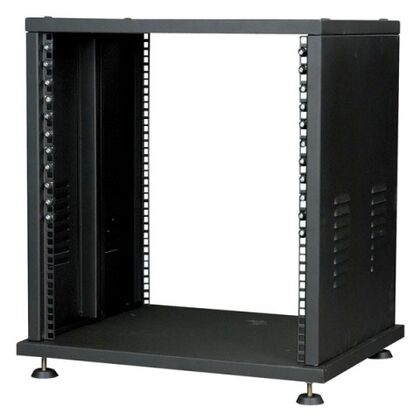

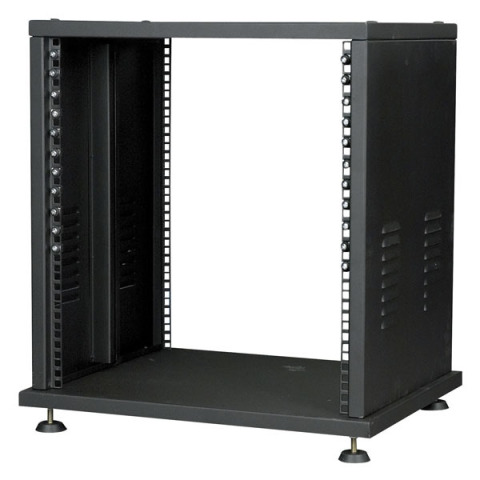

• 19 inch Professional Equipment Rack
• 1.2 mm mat powder coated metal frame body
• Strong double mounting rail on front and backside
• Ventilation: side covers
• 4 rubber feet and 4 swivel wheels included
• Disassembled packing (carton + woodbox protection)
• M6 Mounting sets included
Mechanical Specifications
Rack Units 12 U
Rack Units Back 12 U
Flightcase Size 19"
Height (mm) 594 mm
Width (mm) 566 mm
Depth (mm) 462 mm
Inner Height 540 mm
Inner Width 484 mm
Inner Depth 430 mm
Installation Depth (excl. connector) 430 mm
Weight 18 kg
Maximum Load 90 kg
IP Rating IP20 (indoor use only)
Material Metal
Colour Black
Product Properties
Rack Rail Type Fixed
Castors 4
Castor Size 80 mm
Castor Type Swivel without brake
Rubber Feet Yes
Included Items
Included Accessories Cage Nut, Castors, Rubber feet, Screws
