Electrical Specifications and Connections
Flashover Voltage 30 V
Cable Length 100 m
Pins 3
Conductor Resistance 80 Ω/km
Conductor Capacitance 45 pF/m
Capacity Inner conduct. Shield/Inner conduct. 112 pF/m
Maximum Wire Size 0.1 mm²
Outer Cable Diameter 6 mm
Outer Isolation Type PVC
Mechanical Specifications
Material Copper
Colour Green

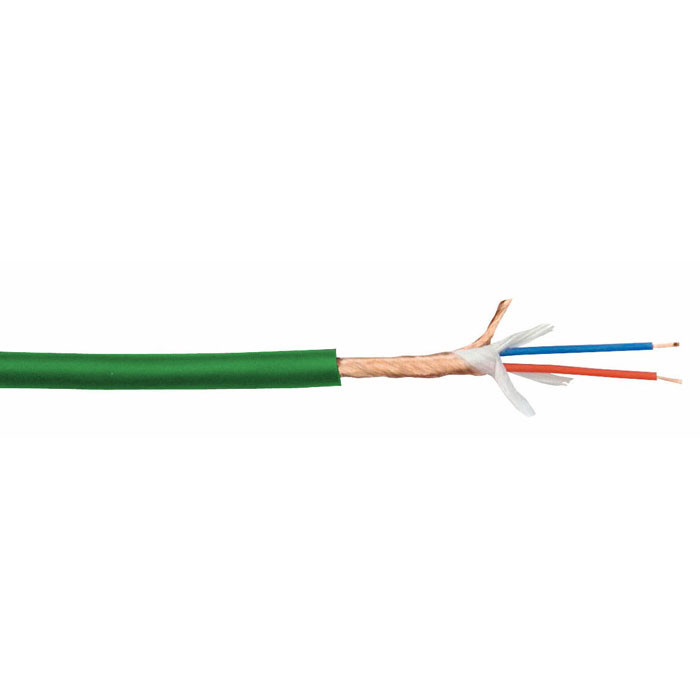

Product Properties
1st Shield Twisted
2nd Shield Plastic foil
Shield Resistance 25 Ω/km
Filler Material Cotton
Conductors 3
Thermal Specifications
Maximum Ambient Temperature 60 °C
Minimum Ambient Temperature -20 °C
Manufacturer:
Dap Audio
