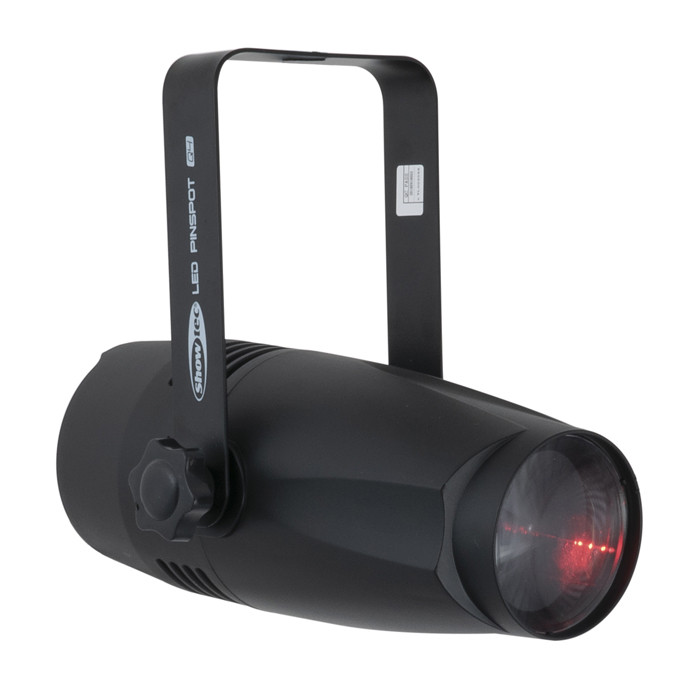

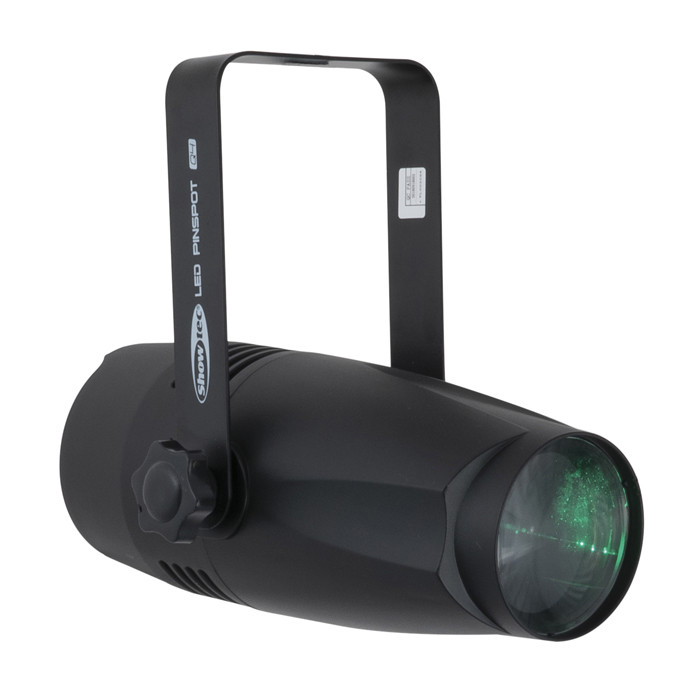

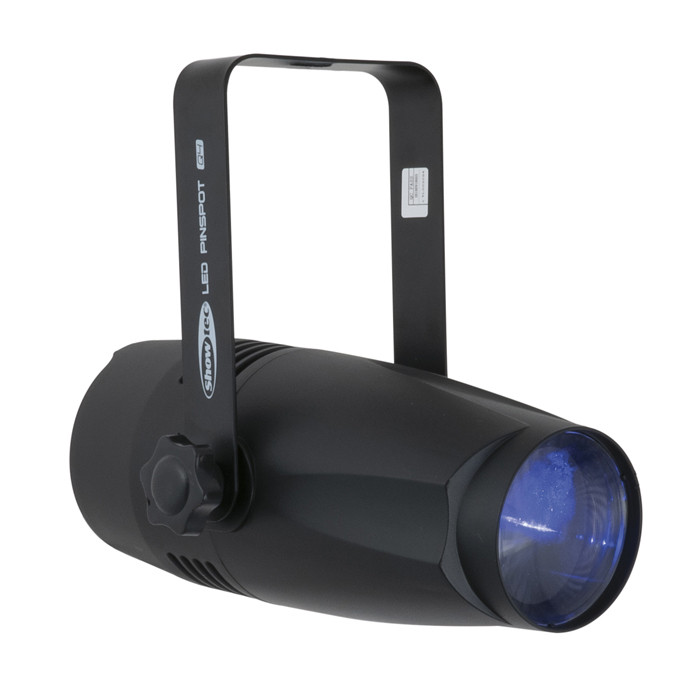

LED Pinspot Q4

Compact and lightweight 15 W RGBW LED Pinspot

3.2° fixed beam angle

Suitable for illuminating a mirror ball or small surface

DMX control

Built-in auto programs

The Showtec Pinspot Q4 is a compact and lightweight 15 watt RGBW Pinspot highly focusing the light to a 3.2° fixed beam angle, suitable for indoor venues. Its narrow beam is perfectly suitable for illuminating a mirror ball or other small surface from a distance with up to 10 metres. The Pinspot Q4 is controllable via DMX and has built-in auto programs on board with plug-and-play ease of use.

Source

Light Source Type LED

Light Source Power 15 W

Par Model 36

Lux @ 2m 7010 lx

Lumen Total 235 lm

Optical

Beam Angle Circular 3°

Control and Programming

Control Mode Built-in Program, DMX, Manual, Master Slave, Sound

DMX Channels 4, 6, 8

Protocols DMX

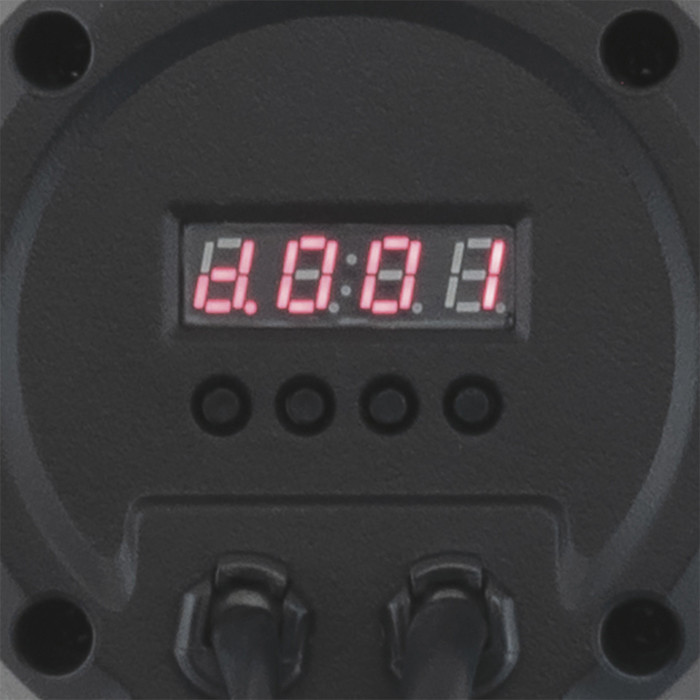

Display LED

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 22 W

Power Connector in Schuko Plug

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 320 mm

Width (mm) 166 mm

Height (mm) 222 mm

Weight 1.2 kg

IP Rating IP20 (indoor use only)

Housing ABS, Plastic

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp

Thermal Specifications

Maximum Ambient Temperature 40 °C

Maximum Surface Temperature 70 °C

Minimum Operating Temperature -20 °C

Included Items

Included Cables Fixed Cable

Included Accessories User Manual

Included Rigging Bracket
