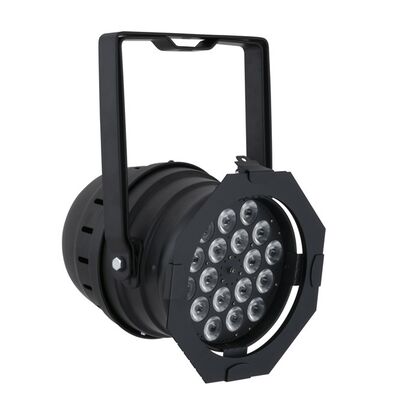

LED Par 64 Q4-18 Black

The Showtec Par 64 Short Q4-18 is a 18 x 8 watt RGBW LED Par with 40° fixed beam angle, suitable for indoor venues. Its short, compact design and double bracket enable easy floor positioning. The Par 64 Short Q4-18 can be controlled manually, via DMX and Master/Slave in either Manual, Auto Run and Sound-controlled mode. Equipped with a powerful colour mixing LED engine, dimmer and strobe function, it can create nice colourful effects, from vivid to pastel colours, up to a distance of 30 metres. The Showtec PAR 56 COB RGB comes with a 130 cm power cable and fits into any setting with either black and polished housing.

Source

Light Source Type LED

Light Source Power 117 W

Refresh Rate 7 Hz

Par Model 64

Lux @ 2m 3790 lx

Optical

Beam Angle Circular 40°

Control and Programming

Control Mode Auto, DMX, Master Slave, Sound

DMX Channels 4, 5, 8

Protocols DMX

Display 7-segment

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 120 W

Power Connector in Schuko Plug

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 290 mm

Width (mm) 230 mm

Height (mm) 230 mm

Weight 3 kg

IP Rating IP20 (indoor use only)

Housing Aluminum die-cast

Colour Black

Product Properties

Cooling Axial fan

Rigging

Mounting Options Clamp, Surface

Thermal Specifications

Maximum Ambient Temperature 40 °C

Included Items

Included Cables Fixed Cable

Included Accessories Filterframe, User Manual

Included Rigging Bracket
