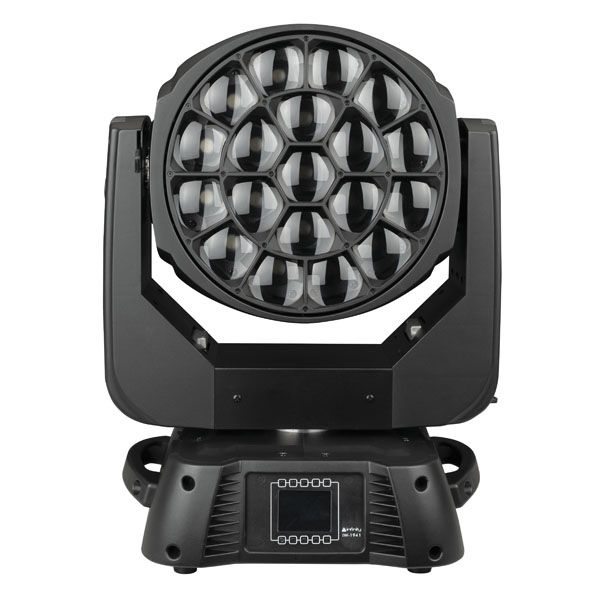

Infinity iW-1941 RDM RGBW Wash, Zoom, Pixel

Pixel control and zoom from 3.6° to 60°

Selectable PWM rate by DMX

Silent fan

White Output Mode

Battery powered display

Source

Light Source Type LED

Light Source Quantity 19

Light Source Power 40

LED Colour Type RGBW

Refresh Rate (min) 600

Refresh Rate (max) 15

Lux @ 3m 101571

Lumen Total 8742

Lumen Red 1982

Lumen Green 3227

Lumen Blue 1077

Lumen White 4501

CRI 78

Optical

Beam Angle Circular (min) 3

Beam Angle Circular (max) 60

Zoom Type Motorised

Zoom Minimum 3

Zoom Maximum 60

Control and Programming

Control Mode Auto, DMX, Master Slave

DMX Channels 20, 177, 76 Art-Net + 13 DMX

Protocols Art-Net, DMX, RDM

Wireless Optional

Display Touch

Dim Curve Linear, Square, I-Square, S-Curve

Zone Control (sections) 19

Dimmer Resolution 16 bit

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Movement

Pan 540

Tilt 270

Pan/Tilt Resolution 16-bit

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 625

Fuse 10

Power Connector in powerCON Blue

Power Connector out powerCON Grey

DMX Connector XLR 3P In/Out, XLR 5P In/Out

DMX Connector in XLR 3P, XLR 5P

DMX Connector out XLR 3P, XLR 5P

Data Connector in RJ45

Data Connector out RJ45

Mechanical Specifications

Length (mm) 365

Width (mm) 304

Height (mm) 468

Weight (kg) 19.26

IP Rating IP20 (indoor use only)

Housing Metal, Plastic

Colour Black

Product Properties

Cooling Axial fan

Rigging

Mounting Options Quick-Lock

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 45

Maximum Surface Temperature 80

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables powerCON cable

Included Rigging Quick-Lock Bracket
