Infinity CHIMP G3 Ultra Extended DMX lighting console with dual touchscreens

Dual 24” hinged touchscreens + 2x HDMI for two external screens
40 motorised faders and 60 executor buttons
65 DMX universes, Art-Net, sACN, integrated LumenRadio
Freely configurable UI, advanced FX engine and powerful colour tools
Ideal for festivals, touring and large professional productions

This product is available for pre-order. The official delivery date will be confirmed at a later stage. The images show a near-final production sample. Any differences in the final product will be purely cosmetic and minimal. All functionality, layout, controls and performance will be exactly as displayed.

The Infinity CHIMP G3 Ultra is the flagship of the G3 series, offering maximum visibility and control for festivals, touring productions and large live shows. It features two 24″ hinged multitouch screens, 40 motorised faders, 60 executor buttons, 4 rotary encoders, each with their freely-programmable multi-purpose key, and many more control buttons, creating a spacious control surface ideal for busking and multi‑layer cueing. All controls are RGB‑backlit for clear feedback and visibility in dark FOH environments. Two external monitors can be added for even greater visibility. Its upgraded CPU/GPU ensures fast response times when handling large show files, complex effects or extensive fixture rigs.

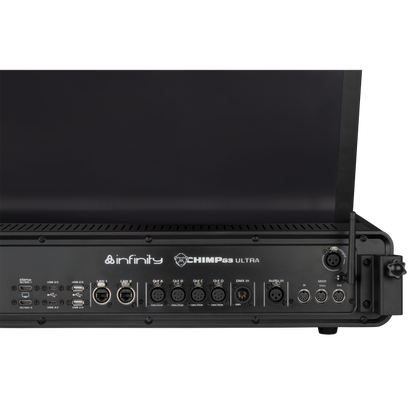

Running the same G3 engine as the Core, the Ultra benefits from fully customisable screen layouts, dynamic preset pools, a visual FX engine, refined colour tools (including colour calibration and CCT/Tint control) and a powerful filtering system that allows you to find and select fixtures with simple text input. With support for up to 65 DMX universes, free patchable DMX ports and integrated LumenRadio wireless DMX, the Ultra adapts easily to modern production workflows. Executor width and priority control, drag‑and‑drop cue editing and flexible page management make the Ultra especially strong in demanding live environments. Connectivity includes USB-C, USB-A, 2x HDMI, 2x RJ45 network, audio I/O, MIDI I/O, 8x GPIO and 4x DMX outputs.

The redesigned control surface improves comfort during long programming sessions, with refined button shapes, lighter actuation force and an optimised chassis angle, making the Ultra reliable, intuitive and ready for daily professional use.

The CHIMP G3 Ultra is part of the third generation of the CHIMP platform, combining a completely renewed hardware architecture with a brand new software engine built from the ground up. Despite this major redevelopment, the G3 software remains instantly recognisable to existing CHIMP users. The familiar workflow, clear logic and operator friendly layout are all preserved, while a new foundation brings higher speed, smoother graphics and more creative tools than ever before.

Control and Programming
Control Mode        Art-Net, DMX, LTC, MIDI, sACN
DMX Channels        33280
Patch mode          Yes
Wireless            LumenRadio
Display             LCD, Touch
Display Resolution (Horizontal)  1920 px
Display Resolution (Vertical)    1080 px
Display Size        24 "
External Display    Yes
External Display Resolution (Horizontal)   1920
External Display Resolution (Vertical)     1080
Unlimited Fixtures   Yes
Cue Lists            10000
Encoder Wheels       4
Faders               40
Memories             99999
OSC (Open Sound Control)  Yes
Playback Buttons     60
Playback Faders      40
Playback Pages       10000
sACN                 Yes
Art-Net              Yes
SMPTE Timecode       Yes
Effects Engine       Yes
Universes            65

Electrical Specifications and Connections
Power Supply         100-240 V AC 50/60 Hz
Power Consumption    225 W
Power Connector In   Power Pro True
DMX Connector In     XLR 5P
DMX Connector Out    XLR 5P
Data Connector In    etherCON
Data Connector Out   etherCON, HDMI, USB A, USB C
MIDI Connector       Yes
HDMI Outputs         2
Ethernet Ports       2
Audio Triggers       3

Mechanical Specifications
Length (mm)          517 mm (20.354″)
Width (mm)           1265 mm (49.803″)
Height (mm)          160 mm (6.299″)
Weight               40 kg (88.185 lb)
IP Rating            IP20 (indoor use only)
Housing              Aluminium, Metal, Plastic
Colour               Black

Product Properties
Cooling              Active
Desk Light           3P XLR female

Thermal Specifications
Maximum Ambient Temperature   40 °C (104 °F)
Minimum Ambient Temperature  -5 °C (23 °F)

Included Items
Included Cables       Power Pro True Cable
