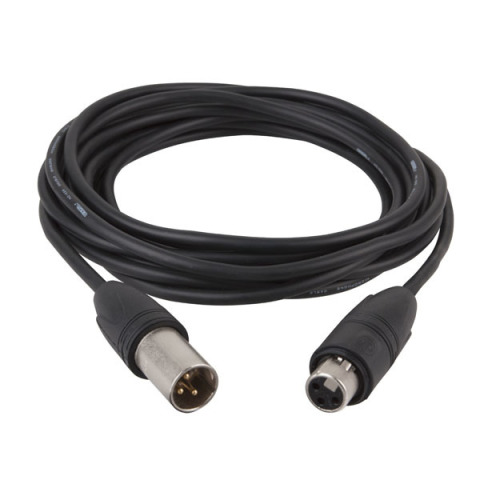

For the most professional user we offer the FL-73 series which is a high-end 100% double shielded balanced mic/line/data cable from exceptional quality and the original “Heavy Duty” Neutrik® XX-HD connectors. All metal design, dust and water protected according to IP 65 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.
Electrical Specifications and Connections
Flashover Voltage 60 V
Impedance 110 Ω
Connector 1 XLR 3P
Connector 2 XLR 3P
Brand Connector 1 Neutrik
Cable Length 1.5 m
Pins 3
Conductor Resistance 90 Ω/km
Conductor Capacitance 60 pF/m
Capacity Inner conduct. Shield/Inner conduct. 78 pF/m
Outer Cable Diameter 6 mm
Outer Isolation Diameter 6 mm
Outer Isolation Type PVC
Mechanical Specifications
Weight 0.148 kg
IP Rating IP65
Material PVC
Colour Black
Product Properties
Contact Type Gold plated
1st Shield Conductive Plastic
2nd Shield Oxygen Free Copper
Shield Resistance 25 Ω/km
Conductors 3
Thermal Specifications
Maximum Ambient Temperature 60 °C
Minimum Ambient Temperature -20 °C
