Full-range 2-way audio set for excellent Hi-Fi quality
80 W RMS, max SPL: 115 dB @ 1 m each
Suitable for outdoor use (IP54)
Multi angled brackets (tiltable to up to 60 degrees)
Quick and easy installation in either horizontal or vertical position
The DAP EVO 8 is a set of two 8-inch passive installation speakers for producing an excellent sound quality of up to 115 dB at one meter distance. With a peak power of 160 watt each, these 2-way Hi-Fi speakers have a high load capacity. It is therefore a perfect full-range audio solution for many locations such as restaurants, retail stores and even clubs.
The EVO 8 fits nicely into any indoor and outdoor location due to its elegant design (available in black and white), strong ABS housing and IP54 rating for protection against heavy rainfall, dust ingress and splash water.

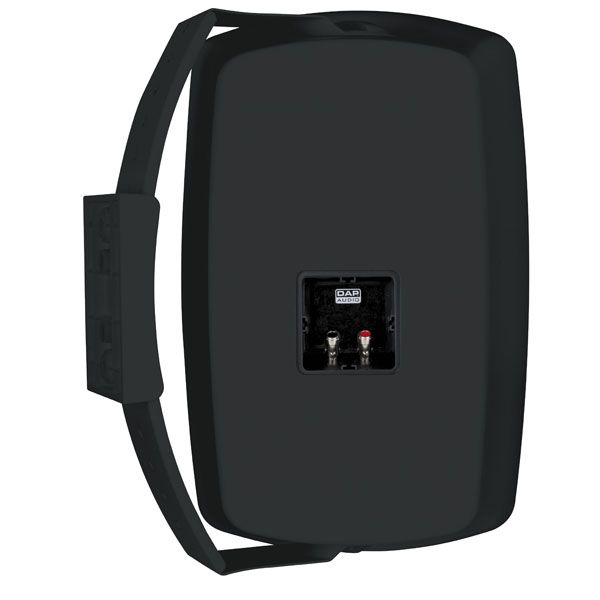

Installation can be done quickly and easily with a terminal connectors and included brackets suitable for either horizontal or vertical mounting. Please note that an external amplifier is required. The DAP CA-4150 is a suitable device for amplifying the EVO 8 speaker set.
Inputs
RMS Input Power 80 W
Peak Input Power 160 W
Passive Input Connection Terminal
Audio Specifications
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 90 dB
Speaker Impedance 8 Ω
Maximum SPL at 1 m 115 dB
Frequency Response Minimum 48 Hz
Frequency Response Maximum 20 Hz
Woofer Diameter 8 "
Woofer Voice Coil 1.5 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1 "
Compression Driver Magnet Type Neodymium
Dispersion Angle Horizontal 100°
Dispersion Angle Vertical 90°
Mechanical Specifications
Height (mm) 385 mm
Width (mm) 250 mm
Length (mm) 227 mm
Material ABS
Colour Black
Weight 5.1 kg
IP Rating IP54
Product Properties
Speaker Grill Material Aluminum
Rigging
Mounting Options Bracket
Mounting Positions Horizontal, Vertical
Included Items
Included Rigging Bracket
