Compact HDMI to 3G-SDI converter
HDMI loop
USB-powered (power supply and cable included)

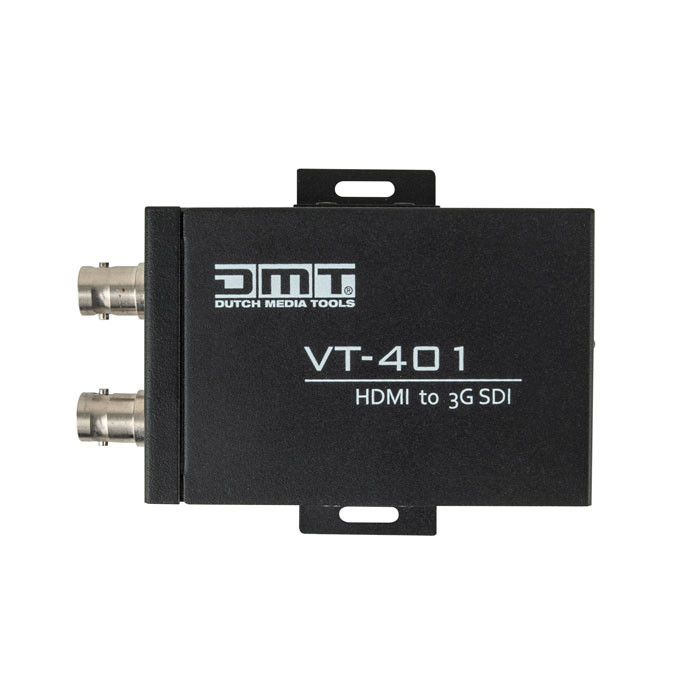

The VT 401 is a compact converter for converting an HDMI signal into a 3G-SDI signal. An HDMI loop allows you to loop the HDMI signal through to another device. The VT-401 is powered through a micro-USB plug. A power supply and cable are included, as are two mounting brackets that allow you to easily mount the converter to a display or monitor.
Inputs
HDMI 1.3 1
Outputs
3G-SDI (out) 2
Electrical Specifications and Connections
Power Supply 5 VDC
Power Consumption 5 W
Power Connector in USB
Mechanical Specifications
Length (mm) 97 mm
Width (mm) 55 mm
Width (including hadles) 73 mm
Width (without handles) 55 mm
Height (mm) 23 mm
Weight 0.163 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables USB-A - Micro USB cable
Included Rigging Bracket
