DMT FI-6 Install series

6.67 mm outdoor LED screen

IP65

Permanent outdoor use

Ideal for stadiums, outdoor advertisement, or signage solutions

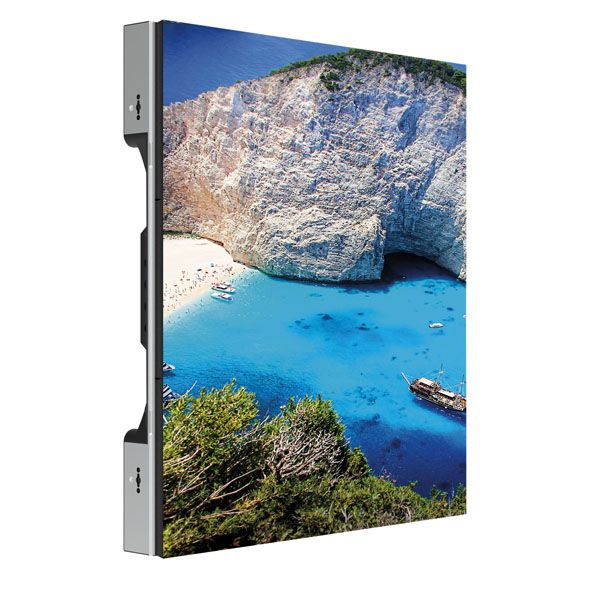

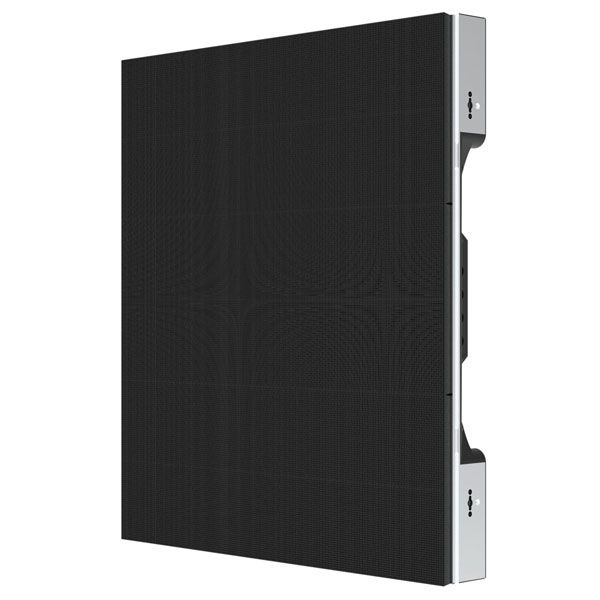

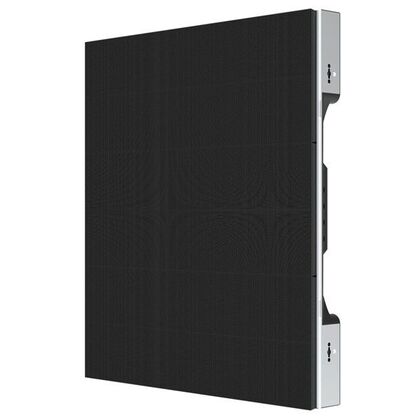

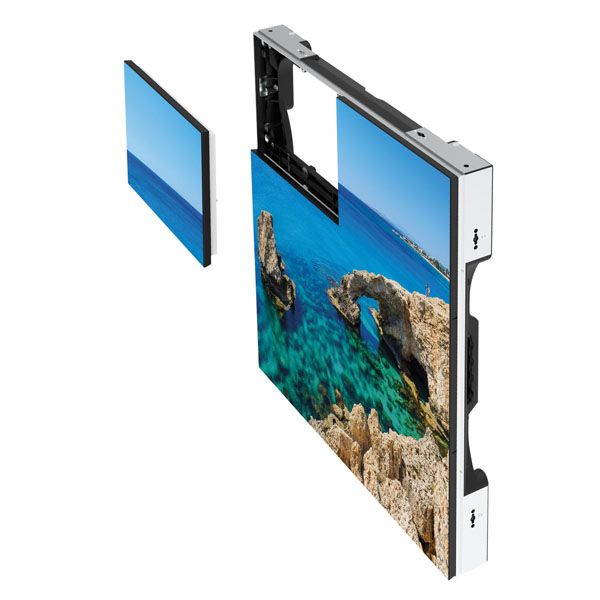

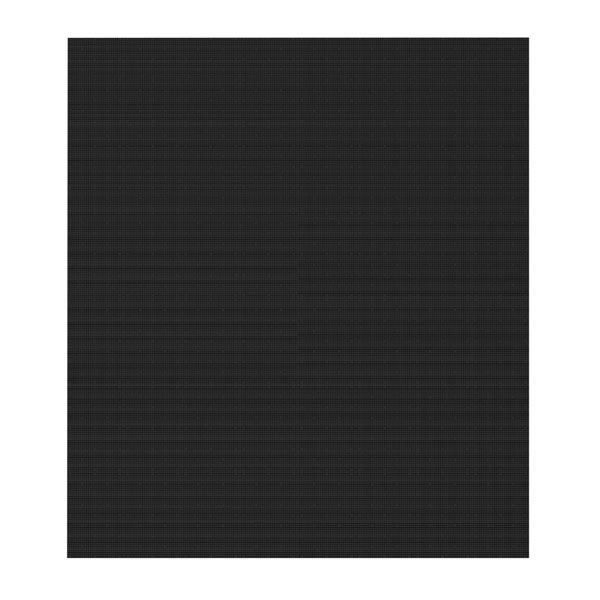

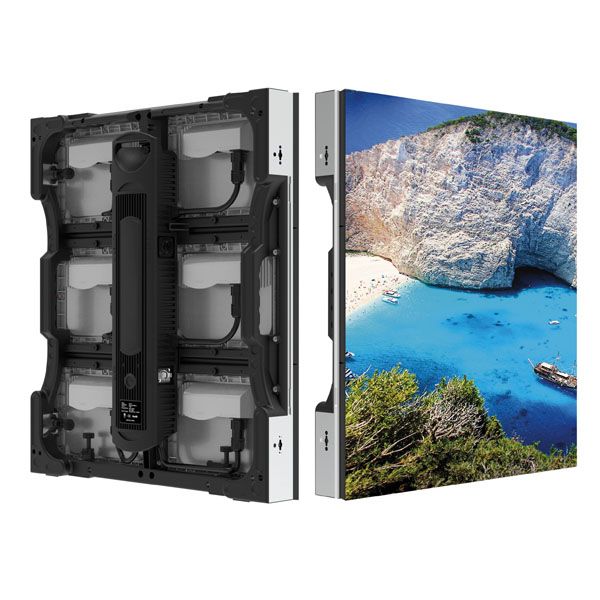

The DMT Pixelscreen FI-6 with a 6.67 mm pixel pitch and a brightness level of 5500 Nits is the ideal screen for stadiums, outdoor advertisement or signage solutions due to the IP65 front-rating and IP54 back-rating. It is very well equipped for outdoor use and preferably as a fixed installed screen. The modular construction of the screen within a lightweight aluminium frame guarantees a seamless screen setup and provides convection cooling at the same time. The cabinets are designed with fast locks for quick and efficient assembly. The LED modules within the screens are hot swappable and serviceable from the back of the screen. Each screen is equipped with a Novastar receiver-card which guarantees a steady and reliable control system.

Optical

Pixel Pitch Horizontal 6.67 mm

Pixel Pitch Vertical 6.67 mm

Cabinet Resolution Width 96 px

Cabinet Resolution Height 108 px

Module Resolution Width 48 px

Module Resolution Height 36 px

Viewing Angle Horizontal 110°

Viewing Angle Vertical 110°

Minimum Viewing Distance 6 m

Source

Light Source Type LED

LED Type Black Frame

Brightness 5500 nits

Control and Programming

Control System Novastar

Receiving Card A5s

Refresh Rate Screen 1920 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 260 W

Power Consumption Average 85 W

Power Connector in powerCON TRUE1

Power Connector out powerCON TRUE1

Data Connector in etherCON

Data Connector out etherCON

Mechanical Specifications

Cabinet Width 640 mm

Cabinet Height 720 mm

Cabinet Depth 113 mm

Module Width 320 mm

Module Height 240 mm

Weight 19 kg

IP Rating IP65

Housing Aluminium

Product Properties

Cooling Convection

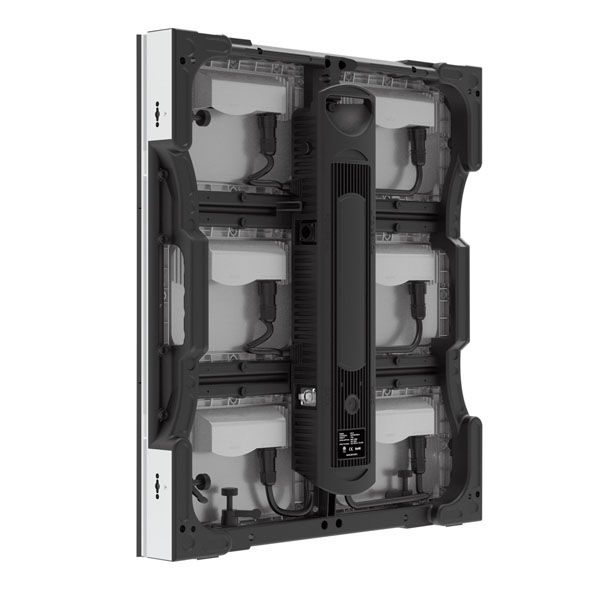

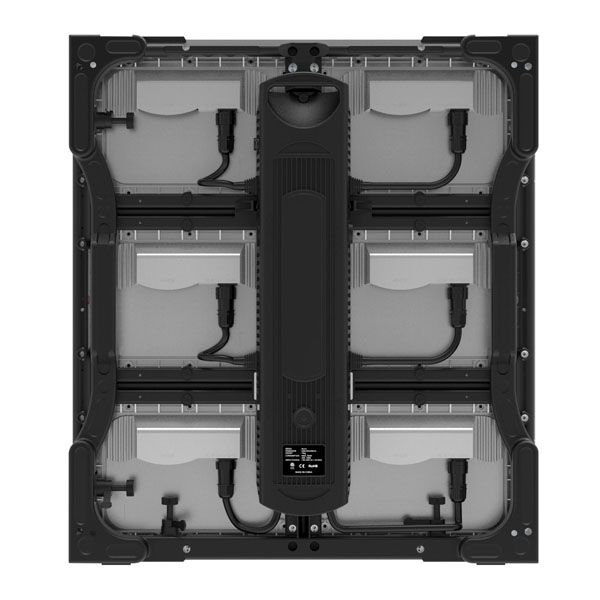

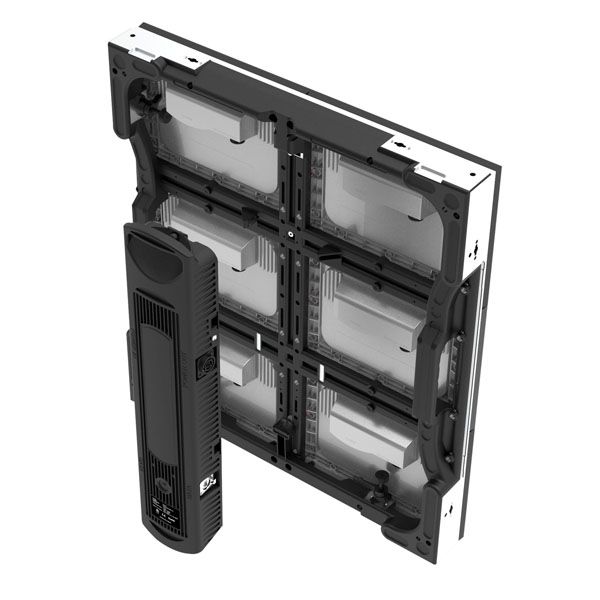

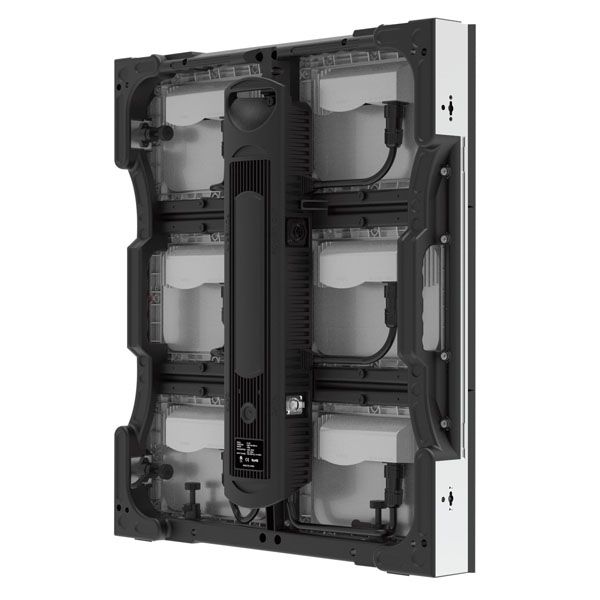

Maintenance Rear Service

Rigging

Rigging Vertical Max. 10 Panels Panels

Locking System Fast Lock System

Thermal Specifications

Maximum Ambient Temperature 45 °C

Minimum Ambient Temperature -10 °C

Included Items

Included Cables Horizontal Power link cable, Horizontal Signal link cable
