DLD-72 MKII Dual 7" Display with HDMI link

BNC, VGA, RCA & HDMI Inputs

Link outputs

7” TFT

Individual screen settings

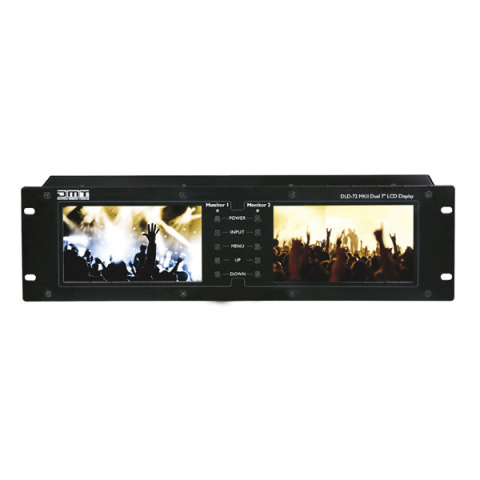

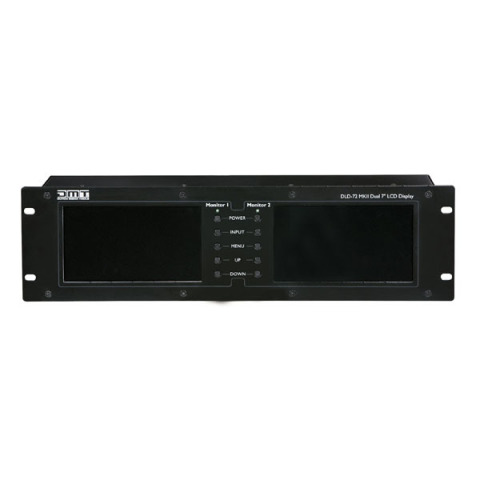

The DMT DLD-72 MKII is a professional rack mount double monitor system. It can be used for VJ monitoring, surveillance systems and any other multimedia setup where monitoring is necessary. It can be used for VGA, CVBS and HDMI sources. Because of the link outputs it is possible to make a daisy chain setup with the DLD-72 MKII. The built-in distributor guarantees a HDMI signal without signal loss. Both screens are individual with separate menus to set your desired settings for each screen.

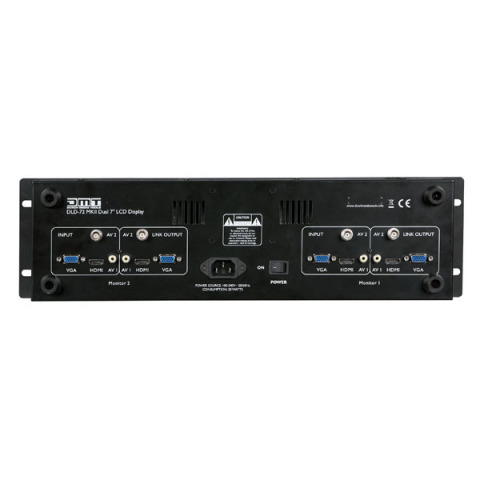

Inputs

HDMI 1.3 2

VGA (in) 2

CVBS Input Impedance 75 Ω

Analog Video Input BNC, RCA

Outputs

HDMI 1.3 (loop) 2

VGA (out) 2

CVBS Output Impedance 75 Ω

Analogue Video Output BNC, RCA

Control and Programming

Display TFT

Display Resolution Width 800 px

Display Resolution Height 480 px

Display Size 7 "

Maximum Input Resolution 1920 x 1080

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 25 W

Power Connector in IEC

Mechanical Specifications

Height (including handles) 133 mm

Width (including handles) 482 mm

Width (without handles) 440 mm

Depth (without handles) 78 mm

Weight 2.4 kg

Flightcase Size 19"

Rack Units 3 U

IP Rating IP20 (indoor use only)

Housing Steel

Colour Black

Product Properties

Cooling Convection

Thermal Specifications

Maximum Ambient Temperature 40 °C

Maximum Surface Temperature 70 °C

Included Items

Included Cables IEC cable
