Recessed installation
2-way speaker system
Magnetic grill assembly
Ultra-thin border

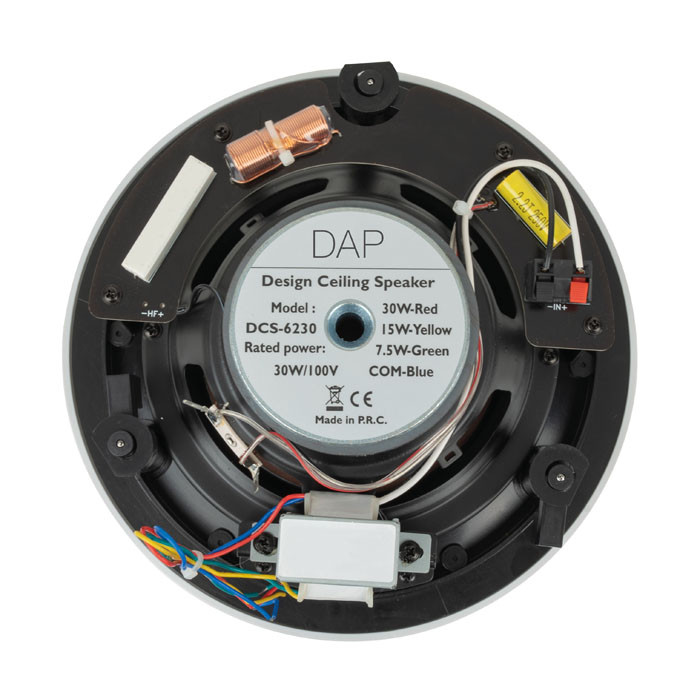

The Design Ceiling Speakers Series from DAP are 3 models of 100 V 2-way ceiling speakers with a ultra slim design. They are available as 4-, 5 and 6 inch models all with ½ inch high drivers and built-in cross over networks.
Due to its slim grill design with very thin border and a limited grill depth, these speakers will become nearly invisible when mounted. The elegant but strong grill is held in place by powerful neodymium magnets. This makes assembly and disassembly very easy but reliable to keep the grill in place during the complete lifetime of the loudspeaker.The mounting of the loudspeaker into the ceiling is easily done by a quick-fixing mechanism which can be tightened by four screws behind the front grill.
Inputs
Peak Input Power 30 W
Transformer 100 V
Line Transformer Taps 7.5, 15, 30 W
Passive Input Connection Open End
Audio Specifications
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 88 dB
Speaker Impedance 8 Ω
Frequency Response Minimum 90 Hz
Frequency Response Maximum 20000 Hz
Woofer Diameter 6 "
Compression Driver Diameter 0.5 "
Dispersion Angle Horizontal 130°
Mechanical Specifications
Height (mm) 95 mm
Width (mm) 230 mm
Length (mm) 230 mm
Weight 1.85 kg
IP Rating IP40
Housing ABS
Mounting Size Ø 200 mm
Colour White
Rigging
Mounting Options Ceiling
