Recessed installation
2-way speaker system

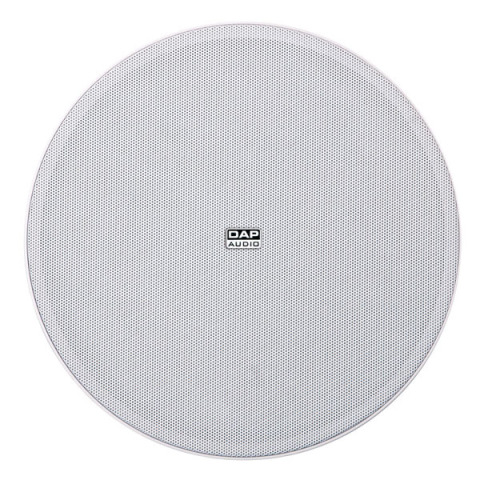

Magnetic grill assembly
Ultra-thin border
The Design Ceiling Speakers Series from DAP are 3 models of 100 V 2-way ceiling speakers with a ultra slim design. They are available as 4-, 5 and 6 inch models all with ½ inch high drivers and built-in cross over networks.
The mounting of the loudspeaker into the ceiling is easily done by a quick-fixing mechanism which can be tightened by four screws behind the front grill.
Inputs
Peak Input Power 20 W

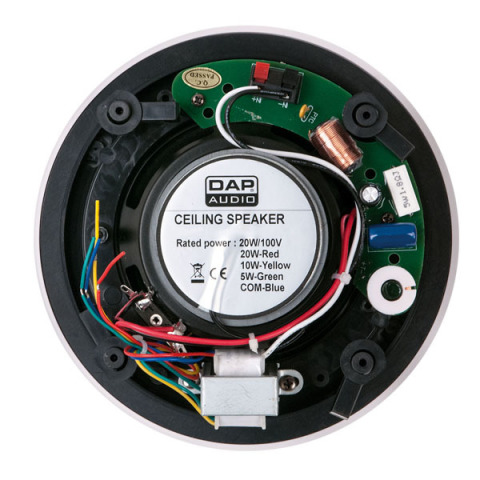

Transformer 100 V
Line Transformer Taps 5, 10, 20 W
Passive Input Connection Open End
Audio Specifications
Speaker System 2-way
Speaker Sensitivity (1 W/1 m) 88 dB
Speaker Impedance 8 Ω
Frequency Response Minimum 100 Hz
Frequency Response Maximum 20000 Hz
Woofer Diameter 5 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 0.75 "
Dispersion Angle Horizontal 130°
Product Properties
Speaker Grill Material Steel
Mechanical Specifications
Height (mm) 80 mm
Width (mm) 203 mm
Length (mm) 203 mm
Weight 1.1 kg
IP Rating IP40
Housing ABS
Mounting Size Ø 180 mm
Colour White
Rigging
Mounting Options Ceiling
