48 kHz, 64-bit Sample rate
5 parametric EQs each in- and output
Limiter, delay, reverse and volume control
USB interface and user-friendly software included
50 user Presets

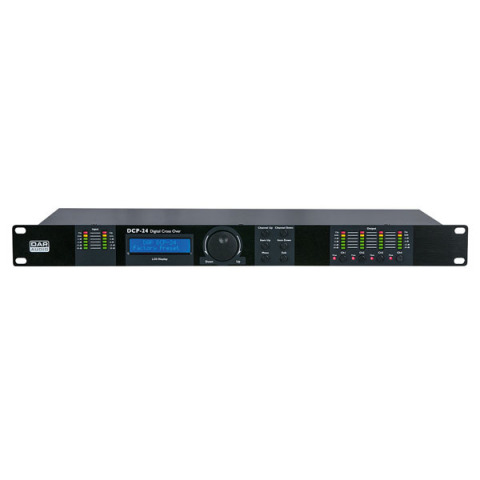

In one view you have insight into all the necessary information thanks to audio signal indicators for inputs and outputs in combination with an LCD display. The DCP-24 MKII is suitable for PA as well as line arrays, audio installations and sound distribution networks.

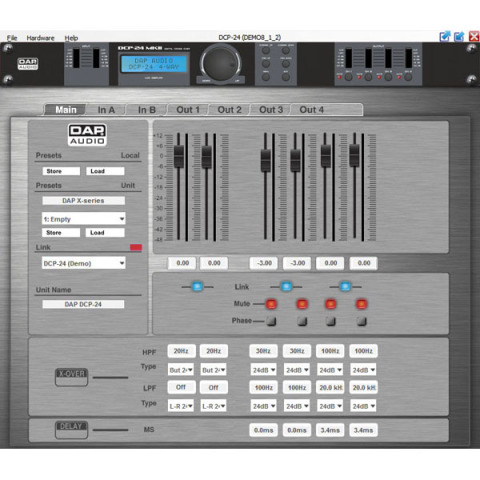

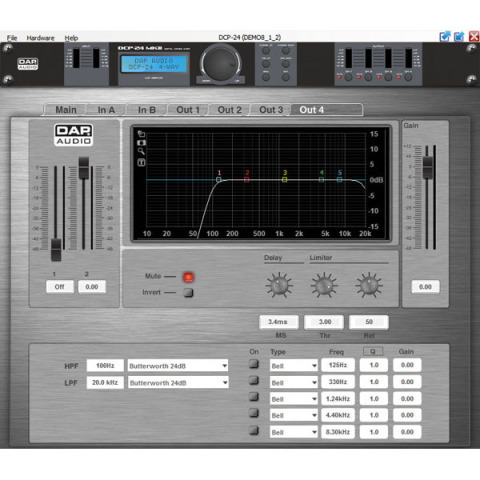

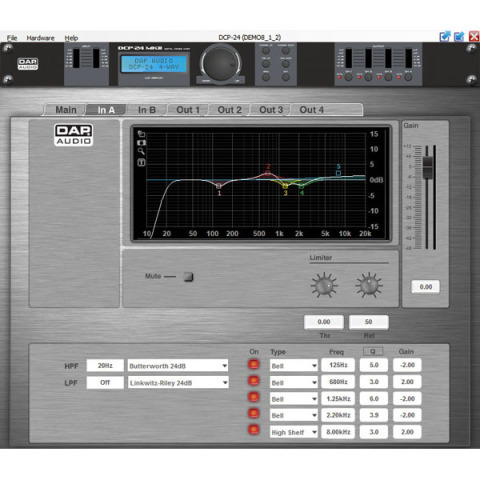

Using the DAP DSP Control software, available for Windows and MacOS, you can use advanced settings to fine-tune and protect your sound system. You can also easily save or recall presets. The DCP-24 MKII can be connected to your PC/laptop using a USB-A to USB-B cable.
Not familiar with speaker processors? Our DAP technicians will help you get started with the basic settings. Ask your supplier or contact person for help and you will receive the right guidance.

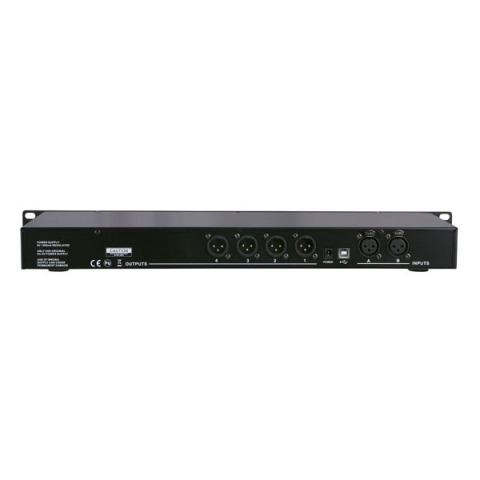

Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Mono Input Headroom 110 dB
Mono Input Gain Range 12 dB
Mono Balanced Input Maximum Level 22 dBu
Mono Input Impedance 10000 Ω
Outputs
Main Outputs 4
Main Output Connector 3-pin XLR
Main Output Headroom 114 dB
Main Output Impedance 100 Ω
Audio Specifications
THD Level < 0.01 %
Signal-to-noise Ratio > 90 dB
Audio Latency 1.27 ms
DSP Processor Bitrate 64-bit
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Software Specifications
Supported Operating Systems Windows

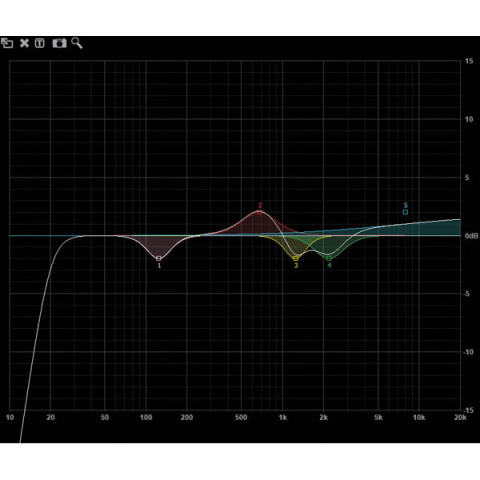

Sound Editing
Equalizer Range 12 dB
Parametric Input Equalizer 5 Bands
Parametric Output Equalizer 5 Bands
Equalizer Types Input Allpass, Bell, High Shelf, Low Shelf, Notch
Equalizer Types Output High Shelf 6, High Shelf 12, Low Shelf 6, Low Shelf 12
Crossover Filter Types Bessel, Butterworth, Linkwitz Riley
Crossover Slopes 6, 12, 24, 48 dB
Dynamics Type Limiter
Phase Reverse Yes
Limiter Treshold Minimum -20 dB
Limiter Treshold Maximum 20 dB
Limiter Release Time Minimum 1 ms
Limiter Release Time Maximum 100 ms
Output Delay (Max) 8 ms
Internal Storage
User Presets Yes
User Presets Capacity 50
Control and Programming
Control Mode Manual, PC Software
Display LCD
Electrical Specifications and Connections
Power Supply 220V-240 VAC 50 Hz
Output Voltage 6 VDC
SMPS Included Yes
Power Consumption 2.8 W
Power Connector in Low Voltage DC plug
Data Connector in USB B
Cable Length 1.5 m
Mechanical Specifications
Height (mm) 44 mm
Width (mm) 483 mm
Length (mm) 155 mm
Installation Depth (excl. connector) 155 mm
Flightcase Size 19"
Rack Units 1 U
Housing Metal
Colour Black
Weight 1.9 kg
IP Rating IP20 (indoor use only)
Product Properties
LED Indicators Clip, Input level, Operation mode, Output level, Signal
Included Items
Included Cables USB-A - USB-B cable

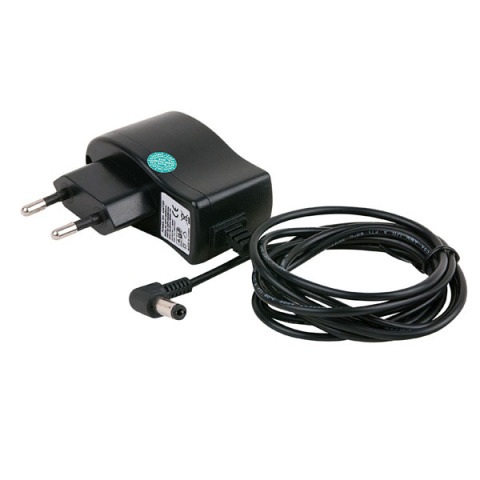

Included Accessories Adapter, Software, User Manual
