Presenting the Xi MKII series, a loudspeaker range for fixed audio installations, redesigned from the Xi- installation speakers with significant changes. Major change is the use of a Celestion HF Driver which enhances the sound performance of the unit extensively. The cabinet and grill have been redesigned as well to have a contemporary and elegant look.

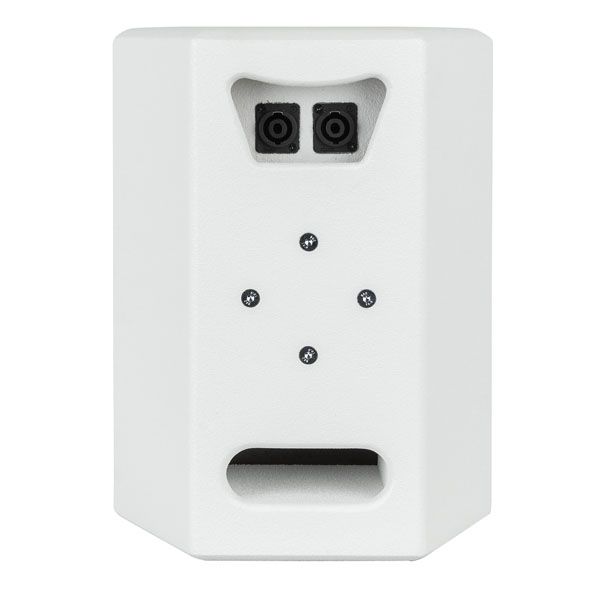

Besides the looks and sound quality it also excels in installer-solutions with versatile installation possibilities: optional U-shape brackets, screw threads for use of flying eyes and to fit most common wall mount brackets.No inner adapter applied and a recessed speakon chassis completes the perfect design for an install cabinet. Finished with a scratch resistant paint and a MagTag metal grill, which can be detached without tools, fast and easy.
The Xi-5MKII and Xi-6MKII are 16 Ohm to accommodate installations with larger quantities. Xi-8MKII and XI-10MKII have rotatable horns which makes the use in both horizontal and vertical position possible. The high powered subwoofer has a ultra-compact design so it will fit in every location and with the optional slim line wall bracket it is possible to mount the subwoofer tight to a wall.
The Xi-MKII series meets today’s standards and is applicable for a wide variety of indoor applications such as restaurants, cafes, clubs, health centers, theme parks, hospitality areas and anywhere where an outstanding sound quality and a compact high pressure level speaker are required. Xi MKII series cabinets are available in black and white.

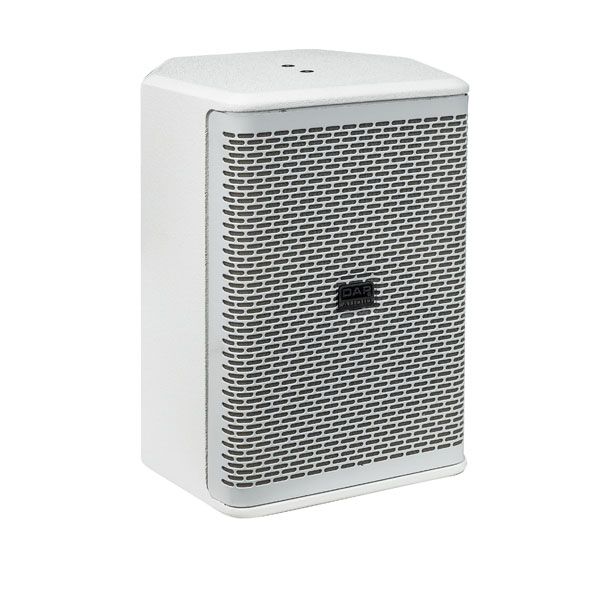

The 2nd enclosure from the Xi-MKII family, a 2-way speaker with a 6.5" LF driver and a 1" Celestion HF driver. Recessed speaker connectors and multiple mounting options. This is a 16 ohm speaker which facilitates the use of multiple speakers. Please note that the corresponding hanging brackets are available as option; D3423HB for black and D3423WHB for white
- 16 Ohm
- Celestion Driver
- Multiple mounting options
- Smooth frequency response
- Detachable MagTag metal grill
RMS Input Power 175 W
Peak Input Power 700 W
Passive Input Connection NL4
Passive Output Connector NL4
Speaker System 2-Way
Speaker Sensitivity (1w/1m) 92 dB
Speaker Impedance 16 Ω
Max. SPL on 1m 122 dB
Frequency Response Minimum 80 Hz
Frequency Response Maximum 20.000 Hz
Frequency Response (-10dB) Minimum 80 Hz
Frequency Response (-10dB) Maximum 20.000 Hz
Woofer Diameter 6.5 "
Woofer Voice Coil 1.5 "
Woofer Magnet Type Ferrite
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1 "
Compression Driver Magnet Type Ferrite
Dispersion Angle Horizontal 90 °
Dispersion Angle Vertical 60 °
Height (mm) 333 mm
Width (mm) 250 mm
Length (mm) 226 mm
Material Wood
Material Thickness 12 mm
Colour White
Finish Painted
Weight 6 kg
IP Rating IP20(indoor use only)
Polemount No
Speaker Grill Material Steel
Speaker Handles Positions Back
Mounting Options Bracket, Eye bolt
Mounting Positions Horizontal, Vertical
Rigging Eye Thread M6
Reference Standard CE
