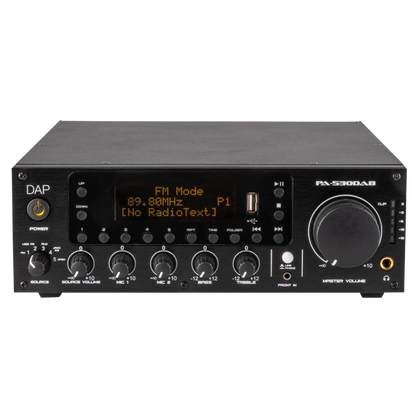

DAP PA-530DAB

3-channel 30 W 100 V Mixer Amplifier

30 W/100 V mono amplifier & multi media player
Play music via USB, FM/DAB+ tuner or external device
Two microphone inputs with phantom power and speech filter
LCD display for tuner information and ID3 tags
FM/DAB+ antenna and green terminal connector included

The DAP PA-530DAB is a compact 30-watt 100 V/8Ω mono mixing amplifier with 4 selectable sources and 2 microphone inputs. Both microphone inputs feature phantom power and can also be used as line inputs. An integrated speech filter can be used to improve intelligibility.

The PA-530DAB has a line input on the rear and an easy accessible Mini-Jack input on the front for connecting MP3 players or mobile devices. It also has a built-in USB audio player and FM/DAB+ tuner with a large LCD screen that displays the active source, tuner information and ID3 tags. The built-in FM/DAB+ tuner can store up to 10 preset stations.

This 100 V mixer amplifier is suitable for small installations up to 30 W. It is designed to support a PA system that is intended for intercommunication or background music in public areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. These amplifiers have an integrated protection to protect against overload and short circuit of the output. This results in very high reliability and easy installations without additional audio processors.

Outputs
Power Amplifier RMS Output                 30 W
Output per Channel at 70/100 V at 1 kHz    30 W
Output Channels                            1
Output Mode                                Parallel
Output Connector                           Terminal
Headphone Output                           1
Headphone Output Connector                 TS balanced 6.3 mm

Inputs
Mono Inputs                                2
Mono Input Connector                       3-pin XLR, TS unbalanced 6.3 mm
Stereo Inputs                              1
Stereo Input Connector                     TRS balanced 3.5 mm
Auxiliary Inputs                           1
Auxiliary Input Connector                  RCA
Transformer                                100 V

Playback
Supported Audio Files                      MP3, WAV
Supported Format                           FAT16, FAT32
Maximum Storage Size                       32 GB
Media Input/Output                         USB-A
Playback Functions                         Up (Skip), Down (Skip), Play, Pause, Stop, Time, Folder

Audio Specifications
Phantom Power                              18 V

Sound Editing
Parametric Main Equalizer                  2 Bands
Main Output Equalizer Gain Range           12 dB
Main Output Fixed Frequencies              100, 12.000 Hz
Speech Filter Attenuation                  6 dB
Speech Filter Frequency                    300 Hz

Wireless Specifications
FM Frequency Start                         87.5 MHz
FM Frequency End                           108 MHz
FM Antenna Impedance                       75 Ω
DAB+ Frequency Start                       174 MHz
DAB+ Frequency End                         230 MHz

Internal Storage
User Presets                               Yes
User Presets Capacity                      10

Control and Programming
Display                                    14-segment

Electrical Specifications and Connections
Power Supply                               115-230 V AC 50/60 Hz
Backup Power Supply                        24 V DC
Power Consumption                          69 W
Fuse                                       2 A
Power Connector In                         IEC
Data Connector In                          USB

Mechanical Specifications
Height (mm)                                95 mm (3.74″)
Width (mm)                                 270 mm (10.63″)
Depth (mm)                                 262 mm (10.315″)
Installation Depth (Excl. Connector)       262 mm (10.315″)
Housing                                    Steel
Colour                                     Black
Finish                                     Powder Coating
Weight                                     6 kg (13.228 lb)
IP Rating                                  IP20 (indoor use only)
Amplifier Cooling                          Axial fan

Product Properties
Chime                                      No
Electronic Protection                      Overload, Short circuit
LED Indicators                             Output level, Power

Included Items
Included Cables                            IEC cable
Included Accessories                       FM Antenna, Green terminal connector
