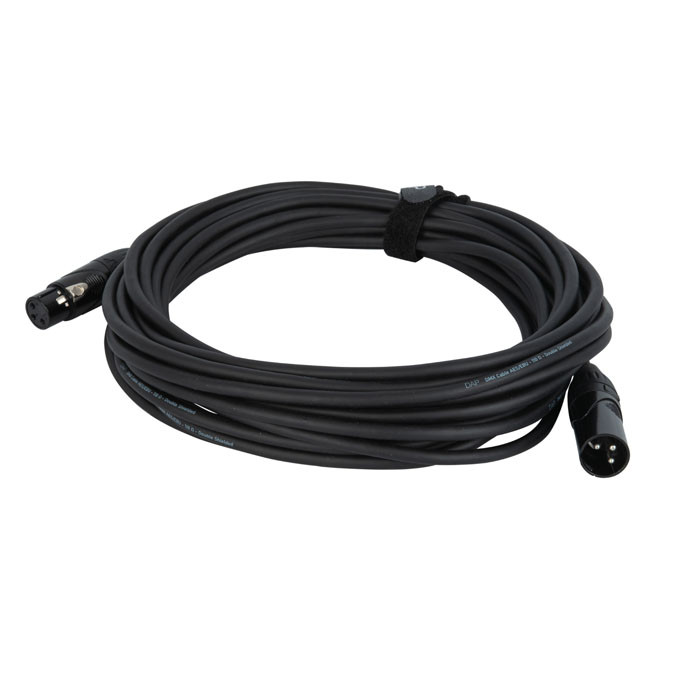

110-Ohm DMX cable
Changeable colour rings
Hook-and-loop fastener included
This 110-Ohm DMX cable is designed for the optimal transmission of AES/EBU digital signals. It comes with hook-and-loop fastener and the latest DAP DMX connectors that can accommodate different colour rings.
Electrical Specifications and Connections
Connector 1 XLR 3P
Connector 2 XLR 3P
Impedance 110 Ω
Cable Length 10 m
Pins 3
Conductor Resistance 80 Ω/km
Capacity Inner conduct. Shield/Inner conduct. 47 pF/m
Wire Connection 0.22 mm²
Outer Cable Diameter 5.8 mm
Outer Isolation Type PVC
Mechanical Specifications
Weight 0.456 kg
IP Rating IP20 (indoor use only)
Material Copper
Colour Black
Product Properties
1st Shield Braided Tinned Copper
2nd Shield Aluminum foil
Shield Resistance 30 Ω/km
Filler Material Cotton
Conductors 2
Thermal Specifications
Maximum Ambient Temperature 70 °C
Minimum Ambient Temperature -20 °C
