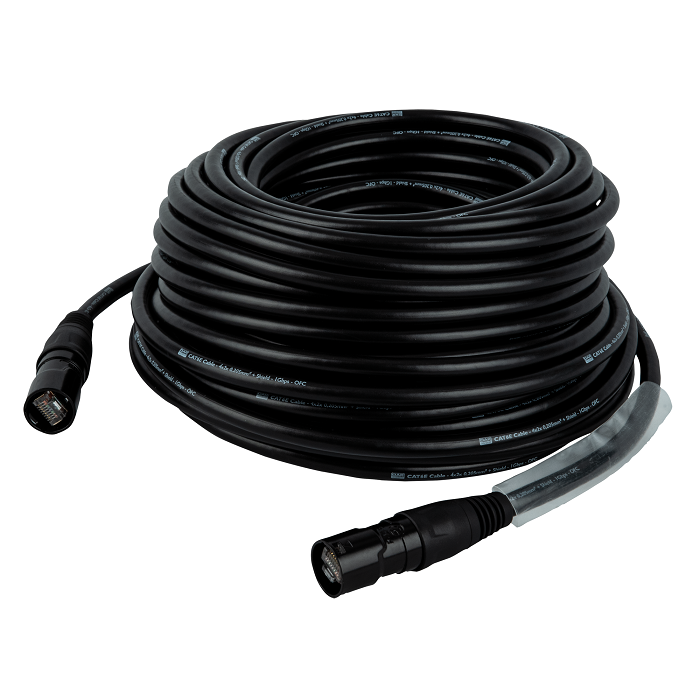

DAP FLR58 - CAT6E F-UTP Cable with Rean RCEM-Z series 20 m

CAT6E F/UTP cable
Rean RCEM-Z connectors
Speeds up to 10 GB/s
Transparent heat-shrink label sleeve
Hook-and-loop fastener included

The DAP FLR58 CAT6E F-UTP Cable offers professional grade signal transmission using IP65-rated Rean RCEM-Z connectors. The RCEM-Z connectors offer IP65 protection from water and dust ingress when mated with the related Z-Series ethernet receptacle, ensuring reliable, high-quality connections for your network signals. The sleek, black-plated zinc connector housing provides rugged protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.

Mechanical Specifications
Weight       1.6 kg (3.527 lb)
IP Rating    IP65
Material     Copper
Colour       Black

Product Properties
Contact Type     Gold plated
1st Shield       Aluminium foil
Conductors       8

Thermal Specifications
Maximum Ambient Temperature   70 °C (158 °F)
Minimum Ambient Temperature  -20 °C (-4 °F)

Electrical Specifications and Connections
Data Connector In     RJ45
Data Connector Out    RJ45
Brand Connector 1     REAN
Cable Length          20 m
Cable Type            Cat6
Pins                  8
Conductor Resistance  78 Ω/km (125.53 Ω/mile)
Outer Cable Diameter  7.6 mm (0.299″)
Outer Isolation Type  Pur
