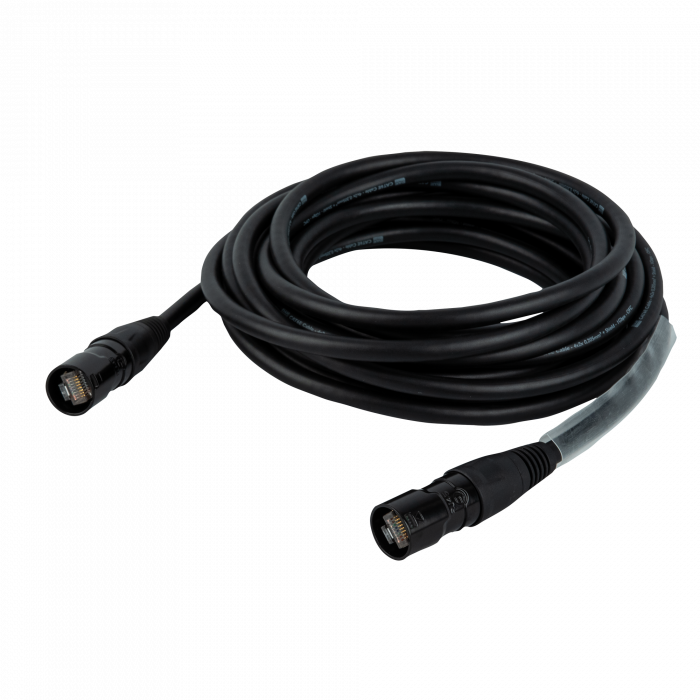

DAP FLR58 - CAT6E F-UTP Cable with Rean RCEM-Z series 10m

CAT6E F/UTP cable
Rean RCEM-Z connectors
Speeds up to 10 GB/s
Transparent heat-shrink label sleeve
Hook-and-loop fastener included

The DAP FLR58 CAT6E F-UTP Cable offers professional grade signal transmission using IP65-rated Rean RCEM-Z connectors. The RCEM-Z connectors offer IP65 protection from water and dust ingress when mated with the related Z-Series ethernet receptacle, ensuring reliable, high-quality connections for your network signals. The sleek, black-plated zinc connector housing provides rugged protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.

Mechanical Specifications
Weight           0.8 kg (1.764 lb)
IP Rating        IP65
Material         Copper
Colour           Black

Product Properties
Contact Type     Gold plated
1st Shield       Aluminium foil
Conductors       8

Thermal Specifications
Maximum Ambient Temperature   70 °C (158 °F)
Minimum Ambient Temperature   -20 °C (-4 °F)

Electrical Specifications and Connections
Data Connector In      RJ45
Data Connector Out     RJ45
Brand Connector 1      REAN
Cable Length           10 m
Cable Type             Cat6
Pins                   8
Conductor Resistance   78 Ω/km (125.53 Ω/mile)
Outer Cable Diameter   7.6 mm (0.299″)
Outer Isolation Type   Pur
