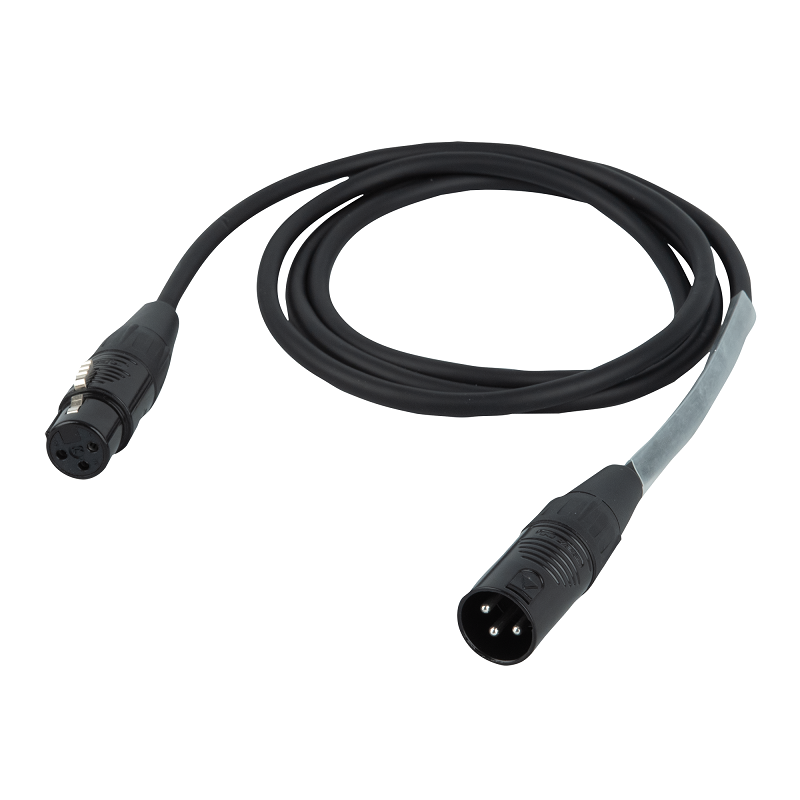

DAP FLR01 XLR M/F Mic/Line Cable Rean RC3 series 0.75 m

Silver-plated contacts
Black housing
Transparent heat-shrink label sleeve

The DAP FLR01 microphone/line cable offers professional grade audio signal transmission, constructed with DAP MC-226 double-insulated cable and Rean RC3 connectors. The RC3 connectors have silver-plated contacts to ensure low-impedance, high-quality connections for your audio signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification.

Electrical Specifications and Connections
Flashover Voltage         30 V
Impedance                 110 Ω
Connector 1               XLR 3P Male
Connector 2               XLR 3P Female
Brand Connector 1         REAN
Cable Length              0.75 m
Pins                      3
Conductor Resistance      90 Ω/km (144.84 Ω/mile)
Conductor Capacitance     60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.  78 pF/m (23.77 pF/ft)
Outer Cable Diameter      6 mm (0.236″)

Mechanical Specifications
Weight                  0.092 kg (0.203 lb)
IP Rating               IP20 (indoor use only)
Material                Copper, PVC
Colour                  Black

Product Properties
Contact Type            Silver plated
1st Shield              Oxygen Free Copper
Shield Resistance       25 Ω/km (40.23 Ω/mile)
Conductors              2

Thermal Specifications
Maximum Ambient Temperature  60 °C (140 °F)
Minimum Ambient Temperature -20 °C (-4 °F)
