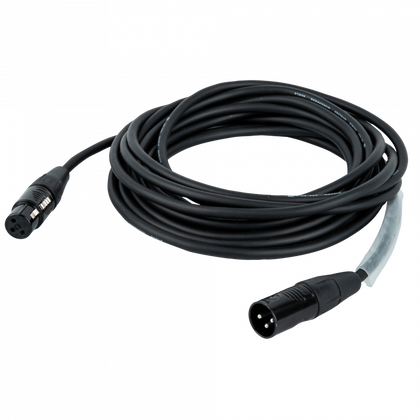

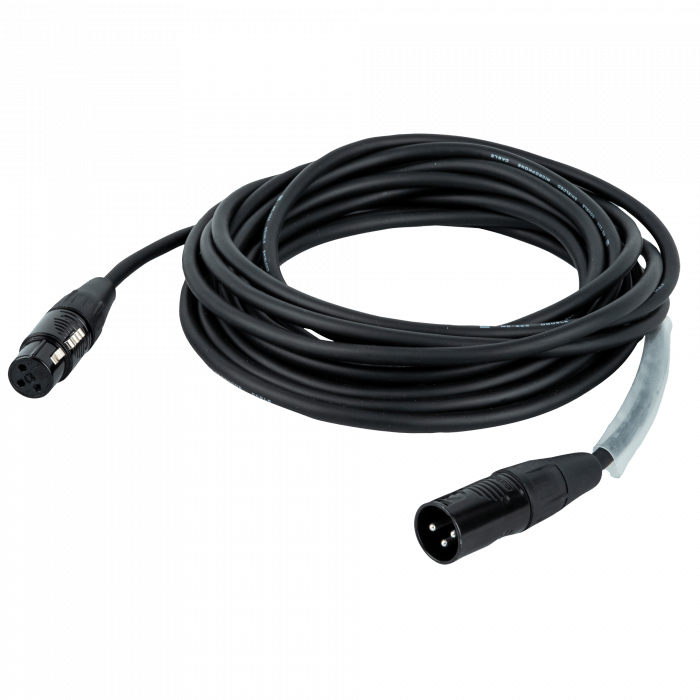

DAP FLR01 XLR M/F Mic/Line Cable Rean RC3 series 10m

Silver-plated contacts
Black housing
Transparent heat-shrink label sleeve

The DAP FLR01 microphone/line cable offers professional grade audio signal transmission, constructed with DAP MC-226 double-insulated cable and Rean RC3 connectors. The RC3 connectors have silver-plated contacts to ensure low-impedance, high-quality connections for your audio signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification.

Electrical Specifications and Connections
Impedance              110 Ω
Connector 1            XLR 3P Male
Connector 2            XLR 3P Female
Brand Connector 1      REAN
Cable Length           10 m
Pins                   3
Conductor Resistance   90 Ω/km (144.84 Ω/mile)
Conductor Capacitance  60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.   78 pF/m (23.77 pF/ft)
Outer Cable Diameter   6 mm (0.236″)

Mechanical Specifications
Weight                 0.54 kg (1.19 lb)
IP Rating              IP20 (indoor use only)
Material               Copper, PVC
Colour                 Black

Product Properties
Contact Type           Silver plated
1st Shield             Oxygen Free Copper
Shield Resistance      25 Ω/km (40.23 Ω/mile)
Conductors             2

Thermal Specifications
Maximum Ambient Temperature   60 °C (140 °F)
Minimum Ambient Temperature  -20 °C (-4 °F)
