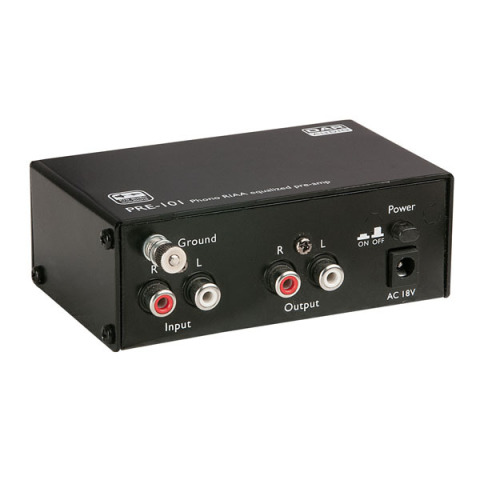

PRE-101 Phono RIAA equalized pre-amp

Solid housing

RIAA Equalization

High quality components

RCA stereo input and output

The DAP PRE-101 is a phono preamp with RIAA equalization. The tiny signal of magnetic pickups is amplified to fit the line-level inputs of mixers or USB sound-cards.

Inputs

Stereo Inputs 1

Stereo Input Connector RCA

Stereo Input Impedance 47000 Ω

Outputs

Main Outputs 1

Main Output Connector RCA

Main Output Maximum Level 16 dBu

Main Output Impedance 600 Ω

Audio Specifications

THD Level < 0.01 %

Signal-to-noise Ratio > 90 dB

Frequency Response Minimum 20 Hz

Frequency Response Maximum 20000 Hz

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Output Voltage 18 VAC

Power Consumption 1.4 W

Power Connector in Low Voltage DC plug

Mechanical Specifications

Height (mm) 40 mm

Width (mm) 113 mm

Length (mm) 80 mm

Weight 0.35 kg

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black

Product Properties

LED Indicators Power

Included Items

Included Accessories Adapter
