Zone selection
Chime Switch
Level Control
Easy to connect with RJ45
The DAP MPA-8120PM is a dedicated paging microphone for the MA-8120 matrix amplifier. It allows you to page any selected zone or all zones. It has a built-in chime and talkswitch.

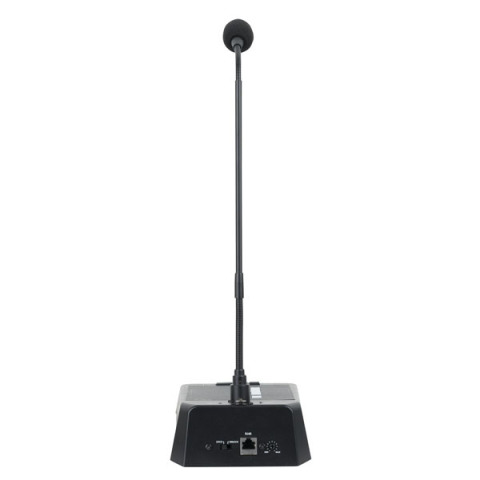

The volume of the microphone can be set on the backside of the microphone.The paging mic can be connected to the MA-8120 easy and simple with a RJ45 connector
Outputs
Main Output Impedance 600 Ω
Zone Output 4
Inputs
Mono Inputs 1
Mono Input Connector 3-pin XLR
Mono Input Impedance 600 Ω
Mono Balanced Input Sensitivity -60 dBu
Audio Specifications
THD Level < 0.1%
Microphone Type Condenser
Frequency Response Minimum 45 Hz
Frequency Response Maximum 15000 Hz
Electrical Specifications and Connections
Data Connector out RJ45
Mechanical Specifications
Height (mm) 139 mm
Width (mm) 470 mm
Length (mm) 203 mm
Housing Aluminium
Colour Black
Weight 0.9 kg
IP Rating IP20 (indoor use only)
Product Properties
Chime Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Accessories Microphone, User Manual, Windscreen
