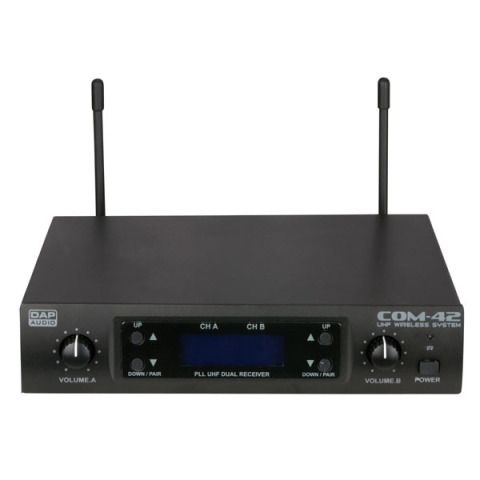

DAP COM-42

Compact 2-channel receiver

Infra-red synchronisation technique

Metal handheld microphone

Colour coding stickers included

If you would need 2 wireless microphones, and have just one channel available on your inputs, the DAP COM-42 is the ideal wireless microphone set for you. The wireless receiver has a balanced XLR output for each wireless transmitter, and also an unbalanced MIX output on a 6.3 mm Jack plug. By using the volume buttons on the front of the receiver, it is easy to setup the desired balance between 2 transmitters. The COM-42 has 99 frequency present which can be set easily through infrared synchronisation technique. A clear LCD display shows the signal strength, audio level and carrier frequency of each channel. A COM-42 wireless microphone set contains a receiver and 2 metal handheld transmitters. Also it is possible to use an optional beltpack transmitter.

Wireless Specifications

Wireless Microphone Frequency Start 606 MHz

Wireless Microphone Frequency End 630 MHz

Wireless Stability 0.005%

RF Power 10 mW

Frequency Deviation 225 ± kHz

Spurious Rejection 50 <- dBC

RF Bandwidth 24 MHz

Audio Specifications

THD Level < 1.0 %

Signal-to-noise Ratio > 100 dB

Microphone Type Dynamic moving coil

Microphone Sensitivity 2.2 mV

Dynamic Range 100 dB

Polar Pattern Cardioid

Max. SPL 135 dB

Frequency Response Minimum 50 Hz

Frequency Response Maximum 16000 Hz

On/Off Switch Microphone Yes

Inputs

RF Antenna Inputs 2

RF Antenna Input Connection BNC

Outputs

Microphone Output 1

Microphone Output Connection 3-pin XLR, TS unbalanced 6.3 mm

Battery

Battery Type AA

Battery Voltage 1.5 V

Runtime Average 6 h

Internal Storage

Channels 99

Control and Programming

Display LCD

Product Properties

Transmitter Type Handheld

Receiver Type True diversity

LED Indicators Battery status, Power

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Output Voltage 15 VDC

Power Connector in Low Voltage DC plug

Mechanical Specifications

Height (mm) 45 mm

Width (mm) 210 mm

Length (mm) 210 mm

Length Transmitter (mm) 260 mm

Diameter 50 mm

Installation Depth (excl. connector) 210 mm

Flightcase Size 19"

Rack Units 1 U

Housing Aluminium

Weight 1 kg

Weight Transmitter 0.27 kg

Colour Black

Included Items

Included Accessories Adapter, Colour-coded stickers, Screwdriver
