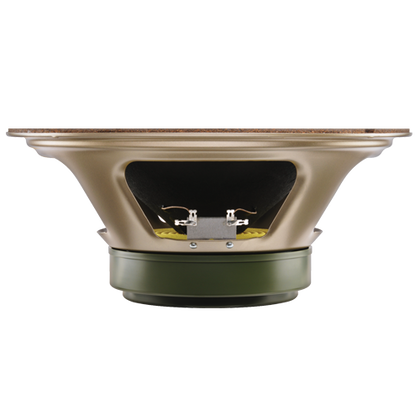

General Specifications
Nominal diameter12", 305mm
Power rating25Wrms
Nominal impedanceAvailable 8Ω or 16Ω
Sensitivity98dB
Chassis typePressed steel
Voice coil diameter1.75", 44.5mm
Voice coil materialRound copper
Magnet typeCeramic
Magnet weight35oz, 0.99kg
Frequency range75-5000Hz
Resonance frequency, Fs75Hz
DC resistance, ReAvailable 6.7Ω or 13.1Ω
Mounting Information
Cut-out diameter11.1", 283mm
Diameter12.2", 309mm
Magnet structure diameter5.9", 150mm
Mounting slot dimensions0.31", 7.9mm Ø
Mounting slot PCD11.7", 297mm
Number of mounting slots4
Overall depth5.1", 130mm
Unit weight7.9lb, 3.6kg
Manufacturer:
Celestion
Ίντσες Μεγαφώνου / Κόρνας:
12"
