100 W dimmable RGB(W) LED driver
Smooth, flickerfree dimming
Made for DMX/DALI environment
Maximum energy and operational efficiency
2—55 VDC and 200—1050 mA

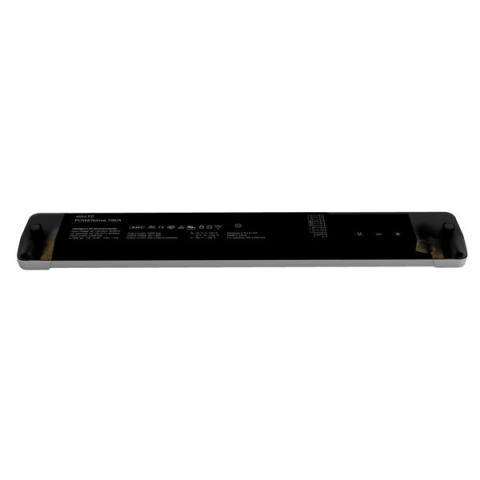

100 W Dimmable LED Driver.
LED dimming made beautifuleldoLED drivers excel in smooth, flicker-free dimming and dim down all the way to 0.1 %
special made for a DALI environment!
Configure to suit your application
You can change the driver's configuration to perfectly fit your application's requirements.
Exact current output values and dimming related settings.
ledcode enables seamless integration of time motion, and brightness based intelligence
for maximum energy and operational efficiency.
Control and Programming
Control Mode DALI , DMX
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Output Voltage Vf/Vo Minimum 2 VDC
Output Voltage Vf/Vo Maximum 55 VDC
Power Consumption 100 W
Minimum Output Current (mA) 200 mA
Maximum Output Current (mA) 1050 mA
Power Connector in Open End
Power Connector out Open End
DMX Connector in Open end
DMX Connector out Open end
Data Connector in Open End
Data Connector out Open End

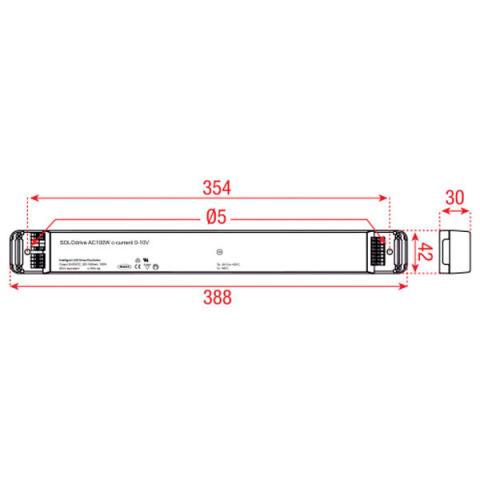

Mechanical Specifications
Length (mm) 388 mm
Height (mm) 30 mm
Width (mm) 42 mm
Weight 681 kg
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal, Plastic
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
Included Items
Included Accessories None
