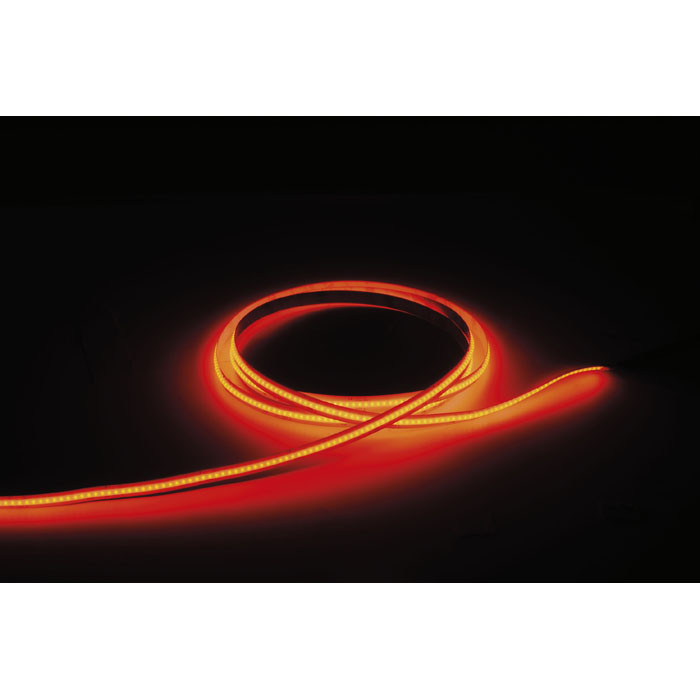

Artecta Havana Halo

RGB LED strip - 5 meter - 840 LEDs/m - 10 mm wide

14 W/m LED Strip

840 LEDs with wide 180° beam angle

Available in RGB and Warm to Daylight White colour temperature

10 mm wide and 5 m long

Easy to install with adhesive 3M backing

The Artecta Havana Halo is a 5 meter long and 10 mm wide LED strip with a stunning 168 LEDs/m and wide 180° beam angle for a smooth homogenic output. This LED strip is available in Warm White (2700 K) to Daylight White (6000 K) colour temperature or RGB.

The Havana Halo can be attached directly on a smooth degreased surface due to its self adhesive backing, but can also be placed inside a suitable LED Profile, like the Pro-Line 9. It'll provide a highly efficient output of 100 lumen per watt.

Source

Light Source Type LED

Light Source Quantity/m 840

Light Source Power 16

Light Source System COB

LED Colour Type RGB

Lumen Total 3590

Lumen output/m 718

Lumen Red 200

Lumen Green 420

Lumen Blue 98

Optical

Beam Angle Circular 180

Control and Programming

Dimmable Yes

Electrical Specifications and Connections

Power Supply 24 VDC

Power Consumption 70

Power/1 m 14

Pins 4

Driver Excluded

Mechanical Specifications

Length (m) 5

Cutting Length 50 mm

Height (mm) 2.2

Width (mm) 10

Weight 0.15

IP Rating IP20 (indoor use only)

PCB Colour White

Thermal Specifications

Maximum Ambient Temperature 50

Minimum Ambient Temperature -20

Product Compliance

Energy Efficiency Class T/B/D
