Eldoled DUALdrive AC 50 W Constant Current

eldoLED DL0560 A DALI 2 Ballast 2 outputs

LightShape: intuitive colour temperature and intensity control

Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %

Ledcode2 supports several digital accessories and IoT applications

Wide application area thanks to fully configurable dimming curve

Perfect for tunable white applications

LED constant current driver max.50 W. Hybrid HydraDrive: efficient, smooth

and flicker-free dimming.

DALI compatible, 2 separately controllable LED outputs

Being a LightShape LED driver, DUALdrive 560/A allows you to compose the exact shade of white at the right intensity level to complement materials in retail, support productivity in the office, or create the perfect atmosphere in a hospitality environment.

Control and Programming

Control Mode DALI

Dali Ballast 2 Ballast

Protocols DALI 2

Dimmable Yes

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Output Voltage Vf/Vo Minimum 1.5 VDC

Output Voltage Vf/Vo Maximum 55 VDC

Power Consumption 50 W

Minimum Output Current (mA) 150 mA

Maximum Output Current (mA) 1400 mA

Power Connector in Open End

Power Connector out Open End

Data Connector in Open End

Data Connector out Open End

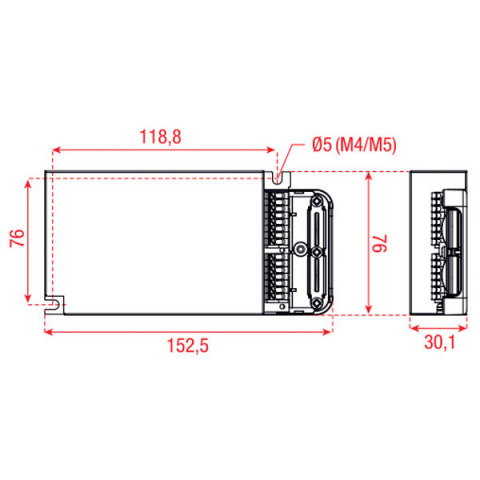

Mechanical Specifications

Length (mm) 153 mm

Height (mm) 31 mm

Width (mm) 76 mm

Weight 0.372 kg

IP Rating IP20 (indoor use only)

Material Metal

Housing Metal, Plastic

Colour White

Thermal Specifications

Maximum Ambient Temperature 50 °C

Minimum Ambient Temperature -20 °C

Included Items

Included Accessories None
