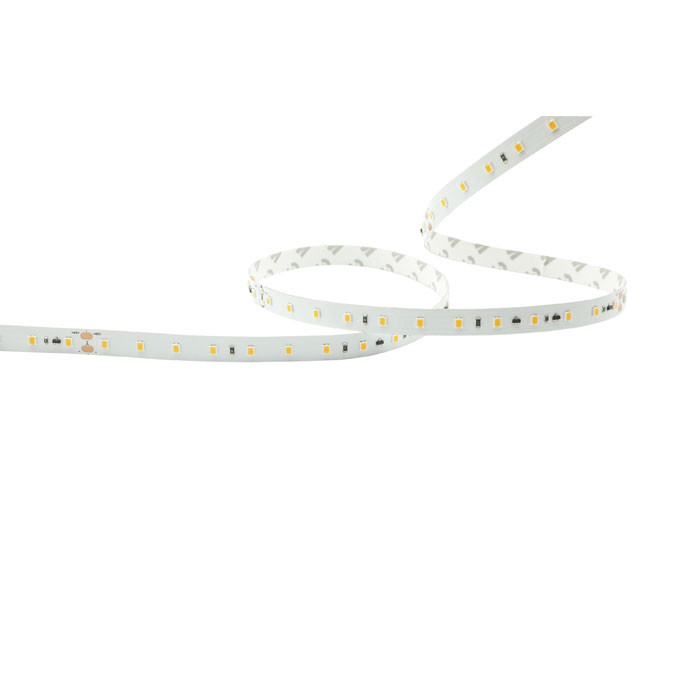

Artecta Cali Ribbon 2835 - 72 - CCT

2700 K - CRI 90 - 440 lm/m - 72 LEDs/m - 4.8 W/m - 48 V

Soft white 2700 K colour temperature
CRI 90
48 V DC, 4.8 W/m
72 LEDs per metre
IP20

The Artecta Cali Ribbon 2835 - 72 is a long, IP20-rated LED strip with 72 LEDs/m, suitable for dry indoor applications. The LED strip is available in colour temperatures from soft white to neutral white (2700 K to 4000 K) and has a high CRI of 90. With a self-adhesive backing it is easily installed on a smooth, degreased surface. It is best used in an aluminium profile (with a cover to protect it and to cool the LED strip by convection). As it is not coated, the Ribbon series has the best heat dissipation and longest lifespan.
The Cali Ribbon series complies with the latest energy saving regulations (EPREL). Please note that due to manufacturing conditions, photometric data may vary between production batches within the EU directive.

Source
Light Source Type         LED
Light Source Quantity/m   72
Light Source Power        0.066 W
Light Source System       SMD2835
LED Colour Type           WW+
Lumen Total               22000 lm
Lumen output/m            440 lm
CRI                       90
CCT                       2700 K

Electrical Specifications and Connections
Power Supply              48 VDC
Power Consumption         240 W
Power/1 m                 4.8 W

Mechanical Specifications
Length (m)                50 m
Cutting Length            166.7 mm
Height (mm)               1.4 mm
Width (mm)                10 mm
Weight                    3.5 kg
IP Rating                 IP20 (indoor use only)
PCB Colour                White

Thermal Specifications
Maximum Ambient Temperature  50 °C
Minimum Ambient Temperature -20 °C

Product Compliance
Energy Efficiency Class       G
